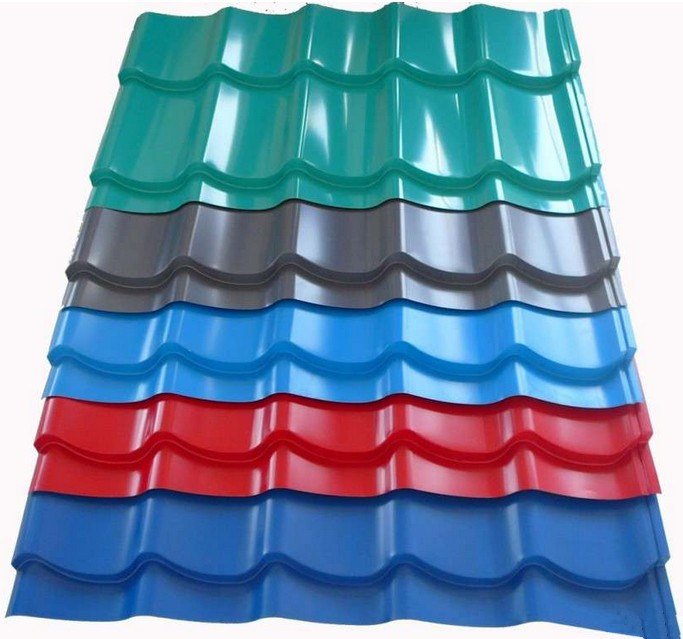

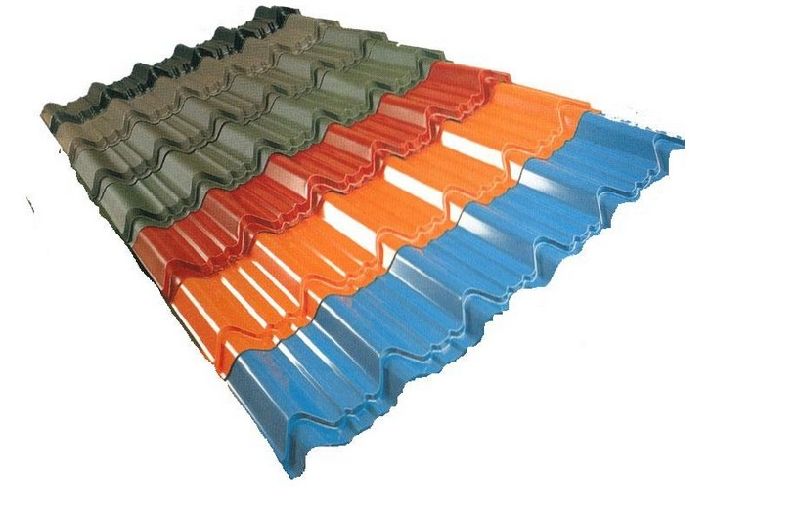

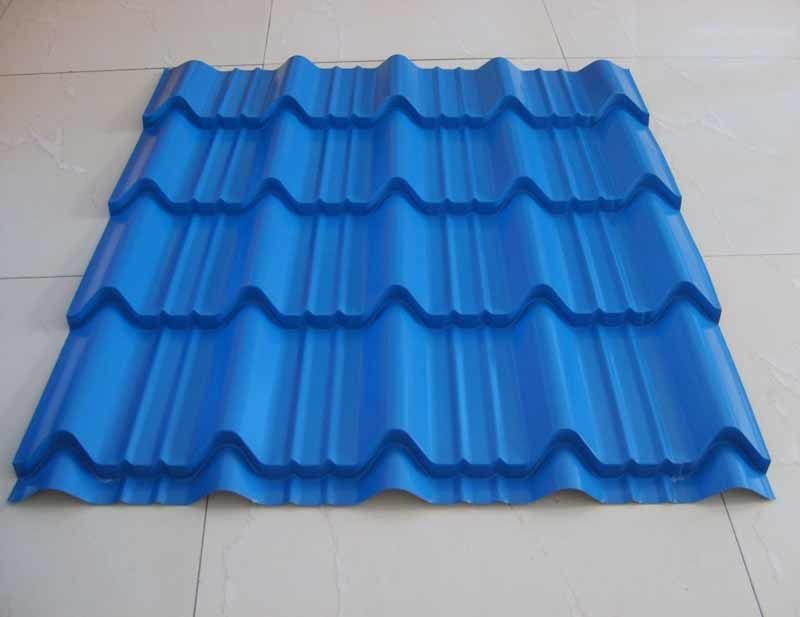

China Wholesale Price Gi Corrugated Roofings/ Color Coated Metal Roofing Tile
| Quantity: | |
|---|---|
-
Metal roofing sheet from China
-
ASTM, AISI, GB, JIS, DIN, BS
-
Coated
-
Mold & Dies, Ship Plate, Boiler Plate, Container Plate, Flange Plate
-
Stock
-
0.16-1.2mm
-
as Per Customer′s Request
-

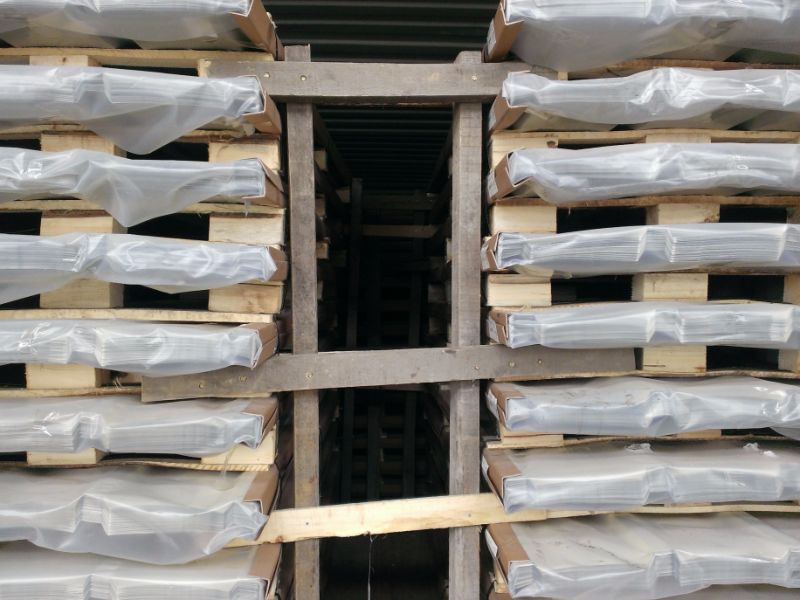

Standard Seaworthy Packaging
-
20-25micro(Front), 7-25micro(Back)
-

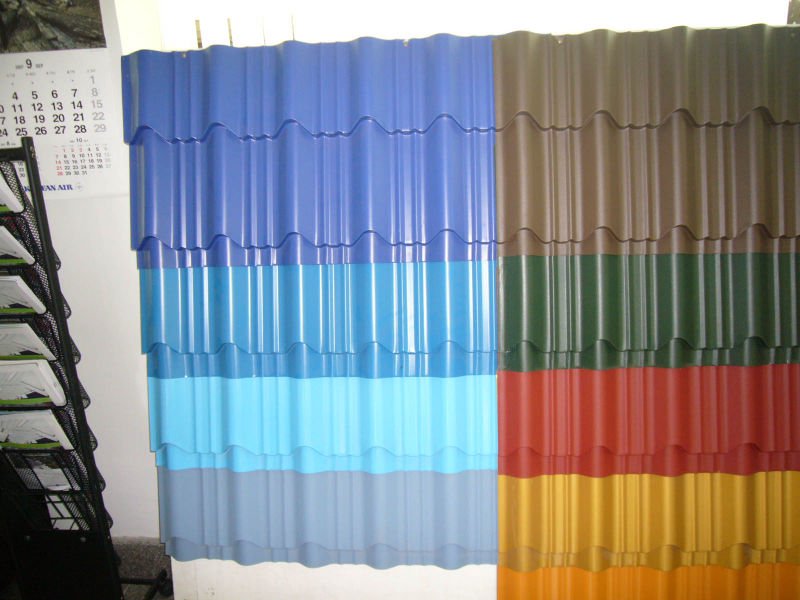

Ocean Blue, White Grey, Red, or Customer′s Samples
-

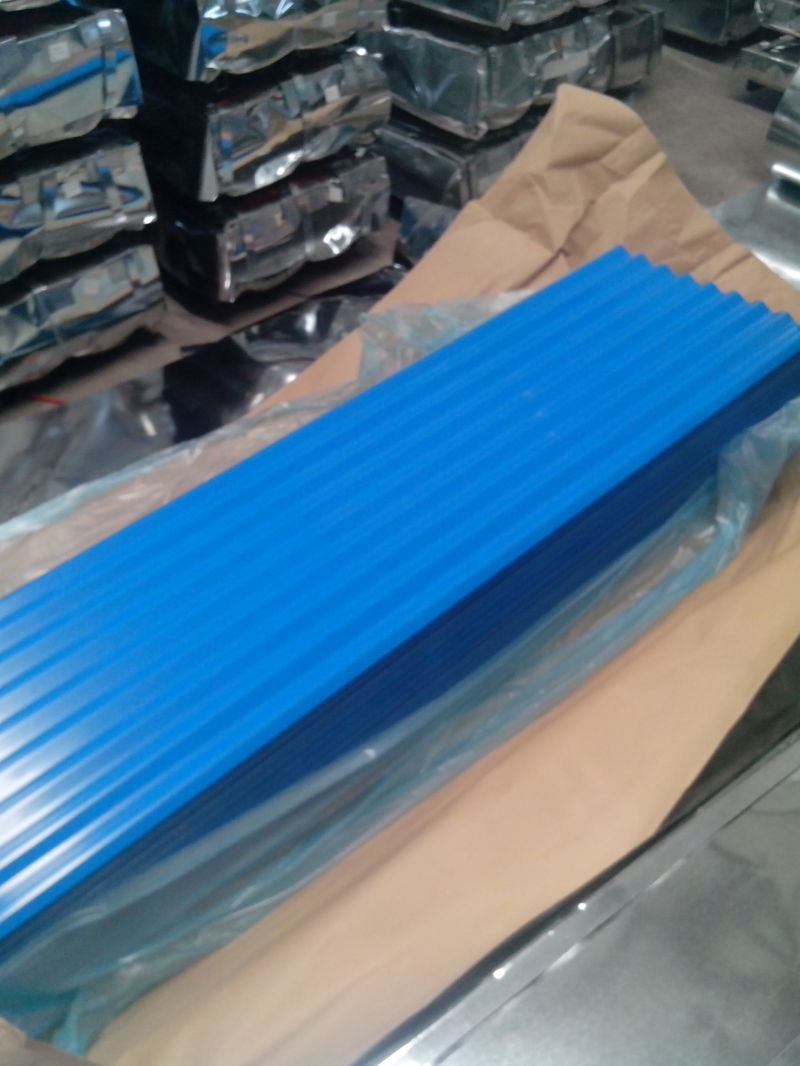

Standard Seaworthy Export Packing or as Required
-
China
-
Steel Plate
-
ISO, SGS, BV, RoHS, IBR
-
Cold Rolled
-
Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
-
SPCC,SGCC,DC51D,Dx51d,Dx52D,Sgcd,Sghc
-
665, 800, 900, 1050 or as Your Request
-
Ce, ISO9001, SGS, Soncap
-
30-275G/M2
-
Construction, Electrical Home Appliance
-
TIGA
-
0.16-1.2*665-1070mm
-
72107010

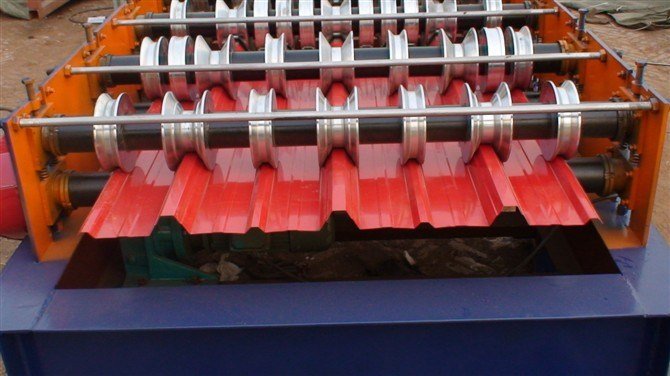

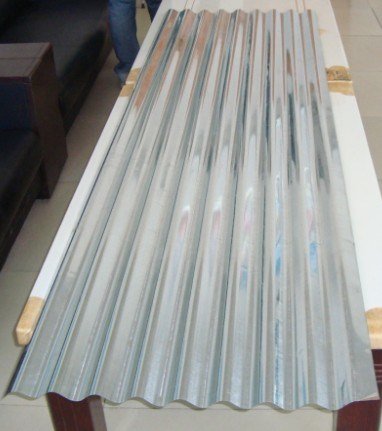

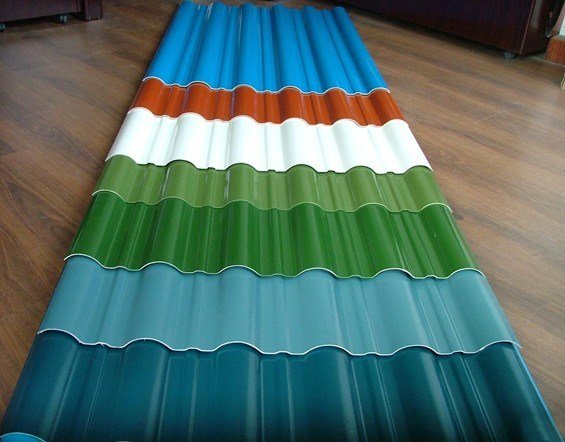

GI corrugated roofing tile or color coated metal roofing sheet is processed by the cold roll forming machine with the raw materials of prepainted PPGI or PPGL steel coils, and Prepainted steel coil / PPGI / PPGL/ color coated galvanized steel sheet is coated with organic layer,which provides higher anti-corrosion property and a longer lifetime than galvanized sheet.
Product description:
Operate Standard: ASTM A653M-04/JIS G3302/DIN EN10143/GBT 2518-2008
Grade : SGCD,SGCH, Q195,DX51D
Galvanized steel sheet /coil features:
1. Zinc coating :30-275g( as required)
2. thickness:0.16-1.2mm
3. width:914-1250mm(914mm, 1215mm,1250mm,1000mm the most common)
4. coil id:508mm/610mm
5. coil weight: 3-5 MT(as required)
6. surface: regular/mini/zero spangle, chromated, skin pass, dry etc.
Application:
1. Construction: Corrugated roofing, Wall Panel, Roofing Panel, Wall cladding, Ceiling, outside building,
2. Boating building
3. Car producing
4. Household appliance
Common Roofing Sheet Types:
| Cover width(mm) | Coil width(mm) | Wave height(mm ) | Wave length(mm) | Wave number | Usage |
| 900 | 1000 | 15 | 225 | 4 | Roof&Wall |
| 750 | 1000 | 35 | 125 | 6 | Roof&Wall |
| 850 | 1000 | 18 | 80 | 11 | Roof&Wall |
| 760 | 1000 | 76 | 380 | 2 | Long-span roof plate |
| 820 | 1000 | 25 | 205 | 4 | Roof |
| 1025 | 1200 | 25 | 205 | 5 | Roof |
| 860 | 1000 | 25 | 287 | 3 | Roof&Wall |
| 840 | 1000 | 28 | 280 | 3 | Roof&Wall |
| 910 | 1000 | 10 | 130 | 7 | Roof&Wall |
Advantages
1. Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted galvanized Steel Sheet.
2. High heat resistance: The reflective surface of the material in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.
3. Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.
4. Multi-usage: It can be used in the various areas.
About us :
1,Experience: Founded in 1998, more than 17 years in construction materials manufacturing
2,Product Idea: Quality decided to safety, safety is the hard truth.
3,Certifications: ISO, CE, SGS, BV
4,Production base: Four factories, more than 400,000 square meters
5,OEM or Customized Service is available.
FAQ
1.Q:You are factory or trading Company?
A: We are a Factory with 8 years of experience specialized in cold rolled coil, galvanized steel coil, ppgi and corrugated roof sheet with high quality, competitive price and good service.
2. Q:what is the MOQ.?
A:Generally speaking, the MOQ is 25 metric ton per size, if your quantity is small , we can supply you from our stock .
3.Q: I need sample, could you support?
A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect. Also you can have a visit to us, welcome to TIGA!
4.Q: How to know the Quality Guarantee:
A: We suggest you to visit our company to check the quality. And also the third inspection can prove our products quality.
B :We will attach some relevant photos via email to show our office and products to you.
