Quick Build Prefab Container House/Tiny Modular Portable Container Office
Home » Products » Container House » Quick Build Prefab Container House/Tiny Modular Portable Container Office
Share to:

Quick Build Prefab Container House/Tiny Modular Portable Container Office

Quantity:
  • TIGA-WLCH122
  • Warehouse, Villa, Dormitories, Temporary Offices, Workshop
  • Customized
  • Optional
  • MGO Board
  • EPS/PU/Rock Wool Sandwich Panels
  • Steel Door
  • TIGA
  • 20ft, 40ft, other size available
  • 730890000
  • Container
  • ISO, CE, BV
  • Switch,Light,Socket etc.
  • Hotel, House, Office, Shop, Toilet, Workshop,Plant
  • EPS/PU/Rock Wool Sandwich Panels
  • Aluminum Window/PVC Window
  • Screw Blot, Nail
  • Standard Seaworthy Export Packing or as Required
  • China

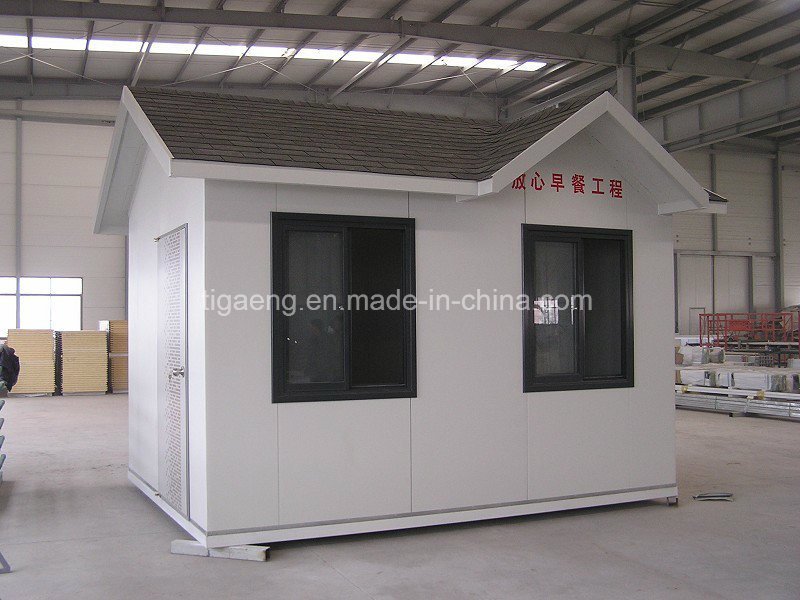

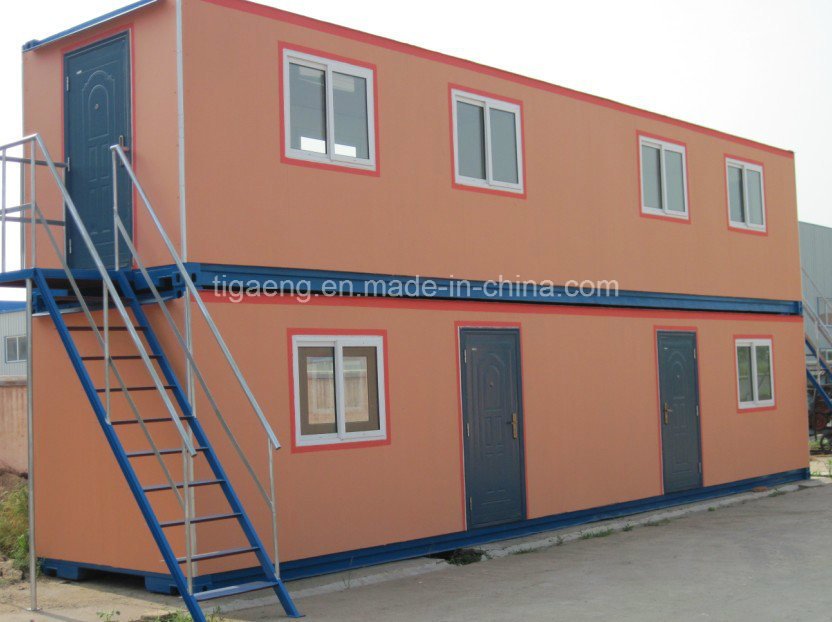

The container house is a convenient and movable building style. Container house is widely used usually as offices in domestic areas other than as habitable houses.  it's firm and safe. The container house can be designed just as just one unit or connected to a whole from several boxes, by simple connection such as bolts.

Product Advantages:

1. Quick installation, 15 minutes 'installation.

2. Beautiful appearance, good safety, good fire resistance property, strong wind resistance, strong anti-earthquake.

3. Low loss, long service life, one container housing can be recycled thousands of times, almost zero loss, life can be up to 25 years.

4. High efficient, whenever and wherever possible to move, whenever and wherever possible to assemble, extremely fast.

5. Environmental protection, no need foundation, It won't produce any construction waste,it is a model of low-carbon buildings.

6. Economy.

Main Materials:

Steel framework

1)Material: Light steel structure, steel material Q235

2)Surface working: sand blasting, epoxy basic painting 55μm, final vinyl acrylic painting 55μm thick

3)Fittings: 8 standard container corner mould fittings ,PVC standard rainwater pipe

4)Forklift openings: size 100*250mm, distance is 1200mm

Floor

1)External wainscot: Flat galvanized color steel sheet, 0.4mm thickness

2)Floor structure: Girder made of 4mm steel. The purlin is square tube dimension 60x40x1.5mm.

3)Warm proof insulation layer: 75mm rock wool

4)Floor: 15mm thick plywood panel for general room; 20mm thick cement board for WC and kitchen

1.5mm PVC floor leather for living rooms floor; 1.5mm anti-slip aluminum board for toilet floor.

5)Permitted loading: 2.0KN/m2

6)Coefficient of thermal conductivity: K=1.1W/ m2K

Ceiling

1)Roof exterior layer: 1.2mm stamping steel plate,epoxy painting

2)Warm proof insulation filling: 75mm rock wool between wooden purlins;

3)Inner wainscot: 9mm MDF laminated decorative panel or 10mm glass magnesium fire-proof board

4)Permitted live loading: 0.5 KN/m2

5)Coefficient of thermal conductivity: K=0.55W/ m2K

6)Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm

Walls

1)Panel width: 1150mm; panel total thickness: 75mm

2)External layer: Galvanized and painted (29μm) color steel sheet 0.5mm

3)Internal layer: Galvanized and painted (29μm) color steel sheet 0.5mm.

4)Warm proof insulation filling: 75mm EPS or rock wool or 50mm PU panel

5)Insulation density: EPS is 12kg/ m3;rock wool is 120kg/ m3;PU is 45kg/ m3

6)Permitted loading: 0.6KN/m2

7)Coefficient of thermal conductivity: K=0.442W/mk

Door

External door: sandwich panel door with opening dimension 850*2100mm, furnished  with a cylinder lock with 3keys. Door frame is made of aluminum, 50mm thick EPS insulation foam.

Windows

Window material: PVC, white color, dimension 1130*1000mm, glass thickness: 3mm, aluminum alloy edge cover, sliding window with fly screen.Or PVC windows with rolling shutter.

Standard Container House Size

Type

Length(mm)

EX/IN

Width(mm)

EX/IN

Height(mm)

EX/IN

Area(m2)

EX/IN

20'GP

6058/5800

2438/2220

2591/2300

14.77/12.88

20'HQ

6058/5800

2438/2220

2896/2600

14.77/12.88

40'GP

12192/12000

2438/2220

2591/2300

29.73/26.64

40'HQ

12192/12000

2438/2220

2896/2600

29.73/26.64



Our Service:

 1. 24 hours on line &one to one service, solve your problem efficiently.
 2. Professional installation team and site engineers for foreign countries.
 3.Customers are warm welcomed to visit our factory at any time, even during holidays.
 4.Perfect arrangement for customers from Hotel booking to product shipping.


FAQ:

1. Q: Are you a factory or trading company?

 A: Henan TIGA Steel Engineering Co., Ltd. is a factory located in Zhengzhou, Henan province, China.

2.Q: What's your supply capacity?

A:Annual Production: container house 40000sets, prefab house 124000square meters;portable toilet 22000sets;steel structure 260000square meters.

3. Q:How to install ?

A:We will provide installation instruction and video for you, technicians will be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation,wages will be provided by buyers.

4. Q: How long is your delivery time?

A:Generally it is within 20-30 days ,definitely according to quantity and color.

5. Q: How do you guarantee the quality of the products?

A:Strict product quality control, quality makes the future.This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.

6. Q: How can I get the quotation of the project ?

A:If you have drawing ,we can offer you our quotation according to your drawing .

If you have no design , Our engineer will design some drawings for you to confirm. And then offer you a quotation.
