Prefabricated Light Steel Structure Color Coated Steel Panel Mobil House
Home » Products » Prefabricated House » Prefabricated Light Steel Structure Color Coated Steel Panel Mobil House
Share to:

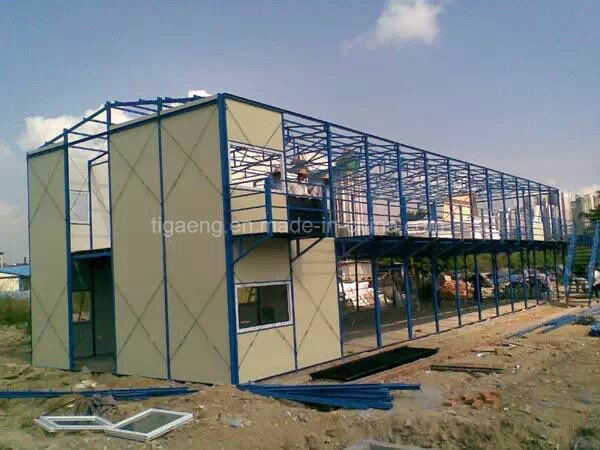

Prefabricated Light Steel Structure Color Coated Steel Panel Mobil House

Quantity:
  • TIGA-WLPH1014
  • Warehouse, Villa, Dormitories, Temporary Offices, Workshop
  • Customized
  • 25-10000 Sqm
  • Aluminium Alloy Window or PVC Window
  • EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
  • 10 Floors
  • High Anti-Fire
  • Seaworthy Package
  • China
  • Sandwich Panel
  • ISO, CE, BV
  • ISO9001,ISO14001,Ce
  • Light Gauge Galvanized Steel
  • Sliding Door Normal Doors or Electric Rolling Gate
  • EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
  • We Can Design Drawings According to Your Request
  • TIGA
  • 100-100, 000 SQM
  • 730890000
The steel framed prefabricated housing system has several obvious advantages,such as light weight, wide span, resistant to strong winds and earthquakes,providing greater thermal comfort and provide excellent noise reduction performance.

Prefabricated house features:

1) Reusable materials.
2) Flexible design, special design meets any of your requirements.
3) Material saving, no construction garbage caused.
4) Convenient & quick assembling and disassembling.
5) Grade 11 Wind and grade 8 earthquake resistances.
6) Safe and durable.
7) Cost saving and convenient transportation.
8)Cheap or luxury light steel structure,can be use about 70 years


Accessories of prefab houses

1.

 Steel  column

120x120x2.5

2.

Steel structure beam

C120x50x20x2.0

3.

Roofing Purlin

C140x50x20x2.0

4.

Wall purlin

C120x50x20x2.0

5.

Anchor bolts

M16

6.

Ordinary bolt

4.8S,Galvanized

2.Roof and wall:



1.

Roofing-PU board
Or Fiber glass board or EPS panel

100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat transfer≤0.028w/mk, anti press≥180Kpa

2.

ceiling upon the door

100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat transfer≤0.028w/mk, anti press≥180Kpa

3.

Exterior wall-PU board
OR
Rockwool board or EPS panel

100mm,40kg, 0.5/0.5mm, heather transfer≤0.021w/mk, anti press≥210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat transfer≤0.028w/mk, anti press≥180Kpa

4.

edge cover plate

0.5mm steel plate



Our service:

1. Professional design and engineering team: Full solution for steel structure design.
2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.


FAQ:

Q: How can I get sample and how long will it takes?
A: Sample fee will be triple, but we'll refund the extra money after you place an order to us. It usually takes 25 days to produce a sample.
Q: What's delivery time?
A: It'll take about 20 days to finish an order. But the exact time is according to actual situation.
Q: Do you have quality control?
A: Yes, we attach great importance to quality control.
Q: How about the warranty?
A: 1 year warranty for steel frames since sold.
