Easy Assembly Steel Portal Frame Prefabricated Warehouse
| Quantity: | |
|---|---|
-
TIGA-2265487
-
GB, ASTM, DIN, JIS, AISI, BS
-
Hot-Rolled Steel
-
Steel Column
-
Q345
-
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
-
We Can According to Your Needs to Design
-
as Your Requirements
-
H Beam or I Beam with Q235 or Q345
-
Color Steel Sliding Door or Electric Rolling Gate
-
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
-
100-100, 000 SQM
-
940600
-
Light Section Steel
-
Low-alloy High-tensile Structural Steel, TIGA
-
Bolt Connection
-
High-Strength Steel
-
Bottom Wall Beam
-
Ball Blast
-
ISO9001,ISO14001,
-
According to The Need of Design
-
PVC Window or Aluminium Alloy Window
-
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
-
Seaworthy Package
-
China
High Quality Q345 Prefebricated Work Shop/Warehouse/ Steel Structure Shed
Thank you very much for your interests in our steel structure shed projects. As you may already know, prefabricated steel structure warehouse buildings feature with the following characteristics.
- Cost effective solution
- Fast construction and easy installation
- Long service life of more than 50 years
- Environmentally friendly
We would like to work with your on your steel structure shed, factory, workshop or other steel structure projects with customized designs and quotations.
Technical Parameters
| Item Name | design manufacture steel structure for workshop warehouse hangar building |

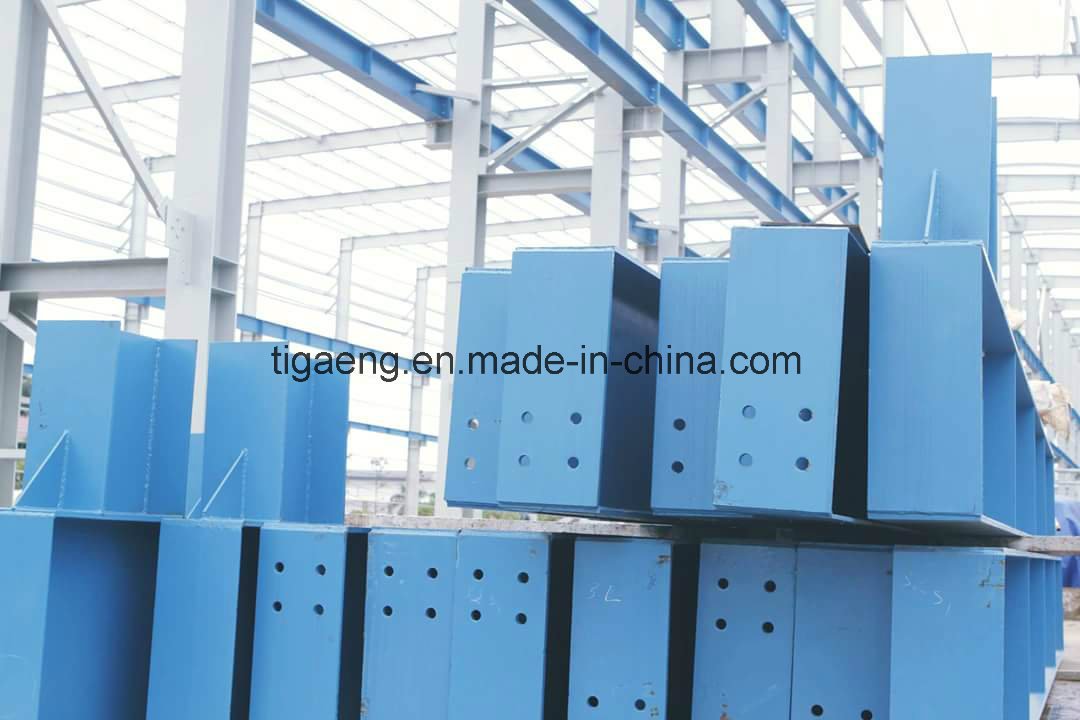

| Steel column and beam | Q345B, welded H section steel with two coats of blue lead paint |
| Cran beam | Q345B, welded H section steel with two coats of blue lead paint |
| Purlin | Q235, galvanizd C section steel with two coats of blue lead paint |
| Roof Cladding | V-760 0.5mm dip aluminum-zinc steel sheet + Glasswool Blanket with Aluminum-foil paper+ Wire Mesh |
| Skylight sheet | V-760, 1.2mm / V-900, 1.0mm / V-780, 1.2mm |
| Exterior wall sheet | V-780, 0.5mm dip aluminum-zinc steel sheet |
| Window | Aluminum alloy window |
| Door | EPS sandwich panel sliding door |
| Service | Design, Fabrication and Installation |
| We can make quotation according to customer's drawing or requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation. | |
| Design software: Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc | |
| Packing | According to customer's requirement |
| Load into 40/20GP,40HQ or 40OT |
If you want to get a quotation, please offer us such information as below:
| 1 | Location (where will be built? ) _____country, area |
| 2 | Size: Length*width*height _____mm*_____mm*_____mm |
| 3 | Live load on roof(KN/M2), live load on second floor(KN/M2) if have |
| 4 | Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s |
| 5 | Snow load (max. Snow height) _____kn/m2, _____mm |
| 6 | Anti-earthquake _____level |
| 7 | Brickwall needed or not If yes, 1.2m high or 1.5m high |
| 8 | Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former. |
| 9 | Door quantity & size _____units, _____(width)mm*_____(height)mm |
| 10 | Window quanity & size _____units, _____(width)mm*_____(height)mm |
| 11 | Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m |
| 12 | Skylight belt, ventilator and any other accessories if needed. |
Payment Terms:
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~40 days, usually as according to the products and quantity
3) Shipment: 20"GP, 40"GP, 40"HQ, 40"OT or in bulk
We offer a one stop shop for Steel Structure services!
TIGA owned domestic advanced sheet metal processing production lines. Equipped with laser cutting, CNC shearing, CNC punching, CNC bending, automatic riveting, automatic welding, automatic spraying, tooling, polishing, silk screen printing, assembly and other large workshop, has all kinds of advanced testing equipment, perfect detection means.
- More than 10 years manufacturing and trading experience.
- Small order is available.
- Superior Favorable price Good service.
- Delivery on time.
- Hard work of our QC team employee guaranteed the stable quality.
- Well- experienced in providing production for Custom design and OEM order.
