Good Quality Heavy-Duty Workshop/Euro Steel Structure Project for Sierra Leone
| Quantity: | |
|---|---|
-
ddgdsg
-
GB, ASTM, DIN, JIS, AISI, BS
-
Hot-Rolled Steel
-
Steel Column
-
Q345
-
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
-
as Your Requirements
-
Ball Blast
-
Color Steel Sliding Door or Electric Rolling Gate
-
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
-
According to Your Needs to Design
-
100-100, 000 SQM
-
940600
-
H-Section Steel
-
Low-alloy High-tensile Structural Steel, TIGA
-
Bolt Connection
-
High-Strength Steel
-
Bottom Wall Beam
-
ISO9001,ISO14001,
-
H Beam or I Beam with Q235 or Q345
-
PVC Window
-
EPS, Rock Wool,PU Sandwich Panel,Color Steel Sheet
-
According to The Need of Design
-
Seaworthy Package
-
China
Pre-engineered china custom design prefabricated light steel structure building workshop

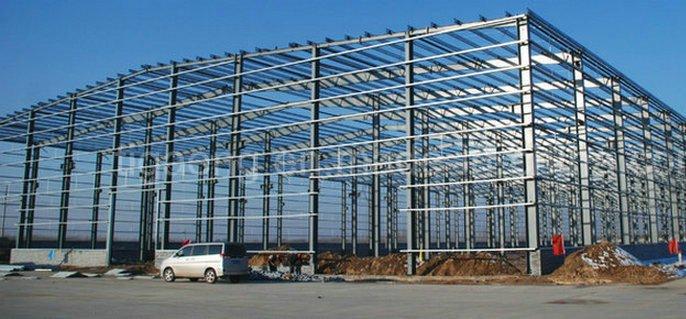

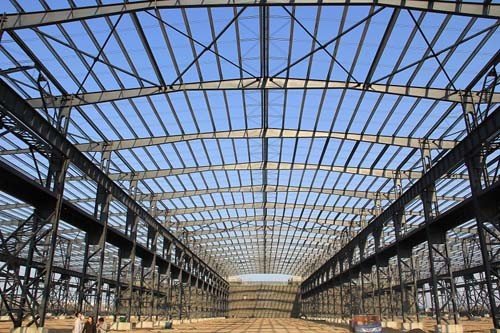

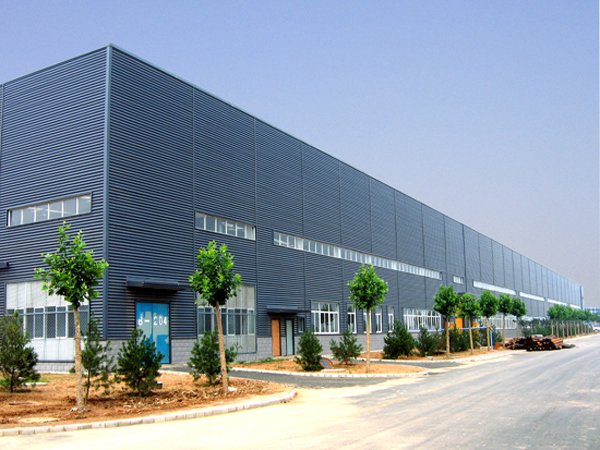

Steel Structure Workshop
Steel Structure Workshop can be used for kinds of building, which includes monospan steel frame, double-span steel frame and multi-span steel frame. It can assemble the crane. Fro portal steel frame light house steel construction, the formed steel sheet and cold bend thin wall purline should be used as the roof. Steel column and steel girder of it should adopt welding H steel, which material are Q235 or Q345.
Steel Structure Workshop system has mild gradient, with one-way slope and single drainage area. It has characters of typical beam attached and mini roof Structures, so it is applicable in shop, simple warehouse and expanding of the building. The columns can be added in order to increase the space.
Width: No column: 18--25m, 1 column: 18--31m, 2 column: 35--46m, 3 column: 48--61m
Brim height3.7--7.5m
Roof gradient1: 48
Column space6m 7.5m 8m 9m
Rigidity, attached with the beam

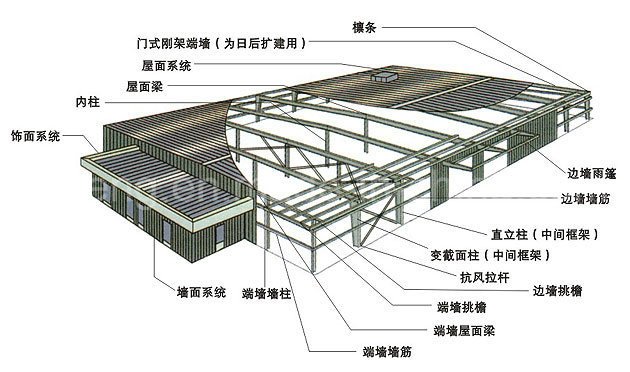

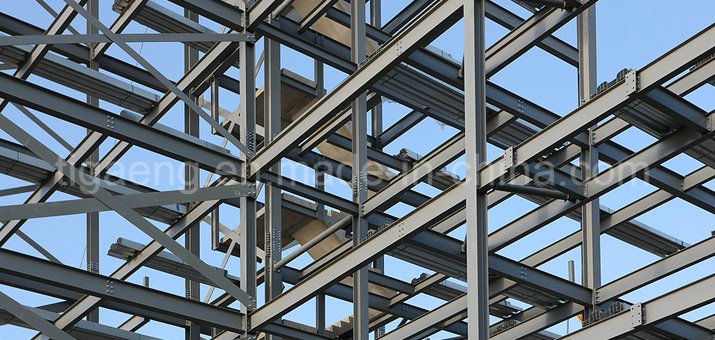

Light steel structure building is a new type of building structure system,which is formed by the main steel framework linking up H section,Z section,C section or U section steel components,roof and walls using a variety of panels and other components such windows,doors,cranes,etc.Light steel structure building is widely used as warehouses,workshops,large factories...etc.
1 Size | Min diameter-L5700mmX W 3800mmXH 2850mm Color-white or blue/red---Depend on you |
2 Steel Frame | C-Profile Steel frame-2.0mm poles |
3 wall | EPS/Rockwool sandwich panels |
4 Roof | EPS/ Rockwool sandwich panels |
5 Base | (1)One floor-The first floor need be flat before assemble house (2) two or three floor-The second and third floor is Aisle Panel is 2.5MM checkered steel panel |
6 Door(1pc) | Steel security door(with keys) |
7 window(2pcs) | Sliding PVC windows:Size--800mm*1100mm---Depend on you |
8 Usage | Temporary housing in the construction sites, dormitories,reception center and shops and so on |
9.Electricity | (1)1 distribution box;1 circuit breaker; (2)2 Ceiling lights ; 3 sockets; (3)1 switch; 3C electric wires |
10.Drainage system | 4pcs PVC water pipes |
