Professional Fabrication Construction Structural Pre Engineered Steel Godown Warehouse
| Quantity: | |
|---|---|
-
TIGA-WL-SSW1037
-
GB, ASTM, DIN, JIS, AISI, BS
-
Hot-Rolled Steel
-
Steel Column
-
Q345
-
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
-
We Can According to Your Needs to Design
-
as Your Requirements
-
H Beam or I Beam with Q235 or Q345
-
Color Steel Sliding Door or Electric Rolling Gate
-
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
-
100-100, 000 SQM
-
940600
-
Light Section Steel
-
Low-alloy High-tensile Structural Steel, TIGA
-
Bolt Connection
-
High-Strength Steel
-
Bottom Wall Beam
-
Ball Blast
-
ISO9001,ISO14001,
-
According to The Need of Design
-
PVC Window or Aluminium Alloy Window
-
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
-
Seaworthy Package
-
China

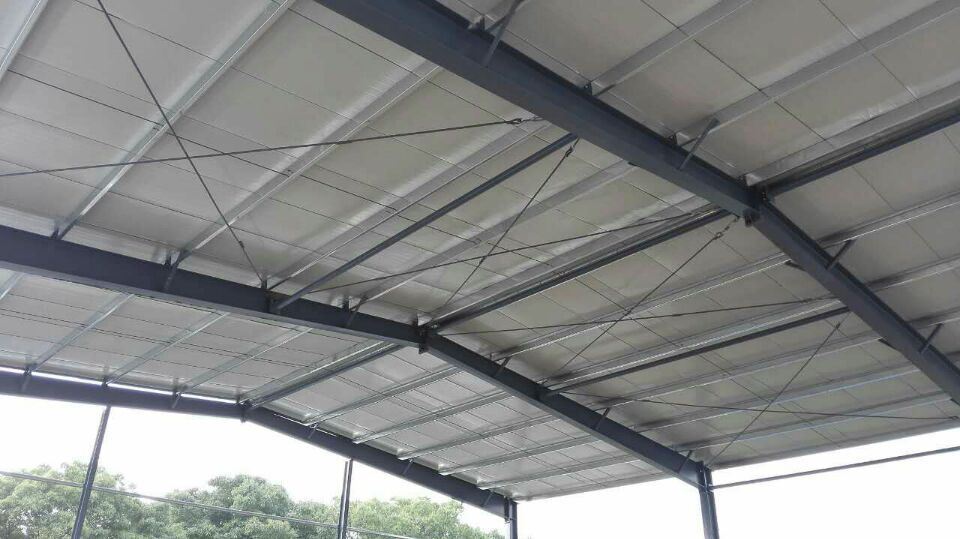

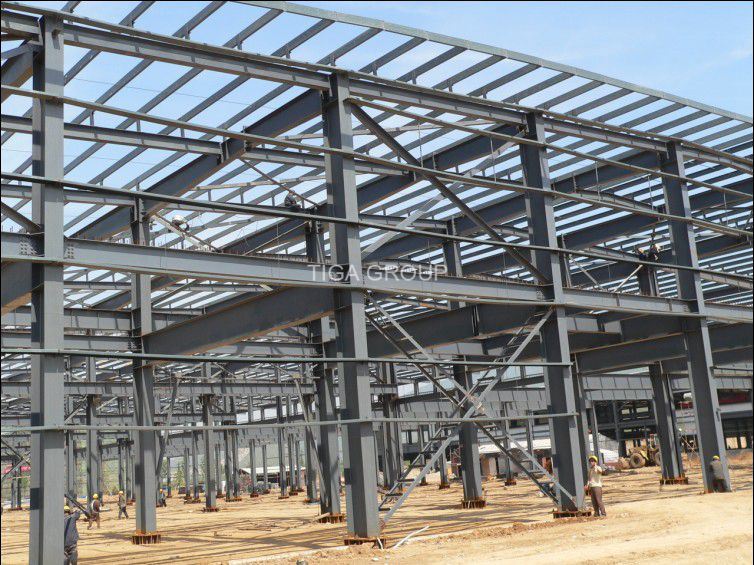

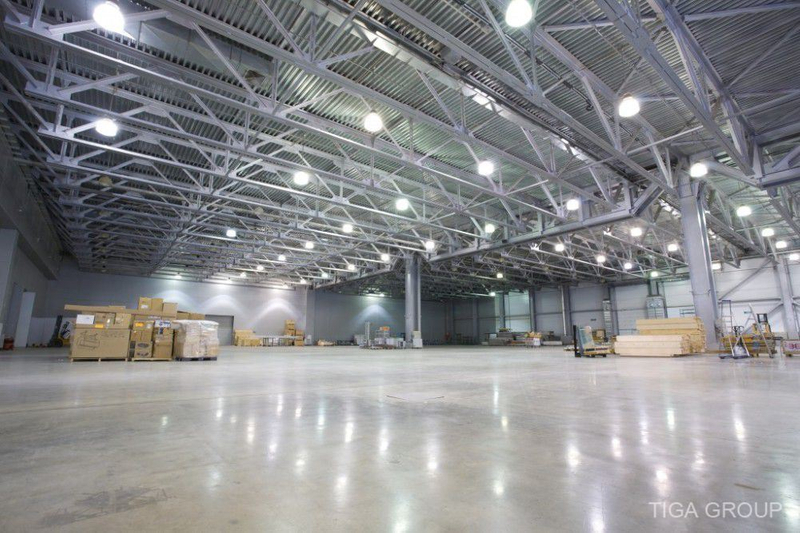

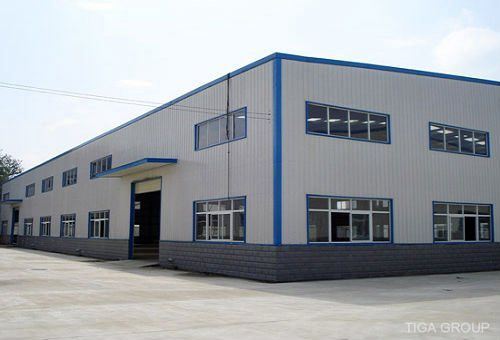

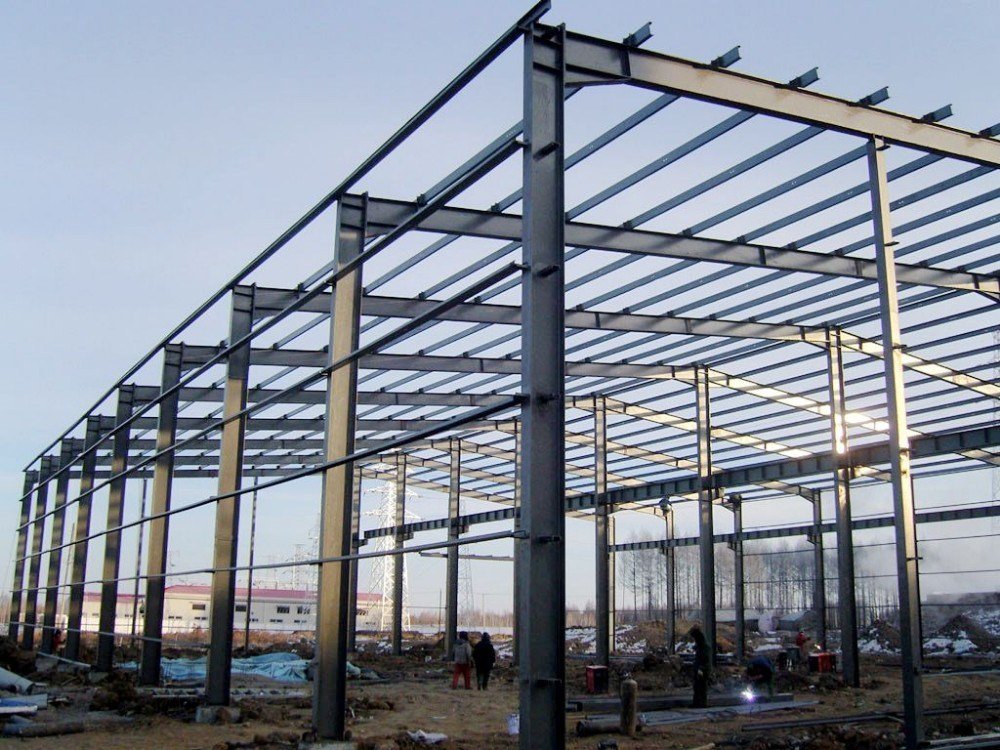

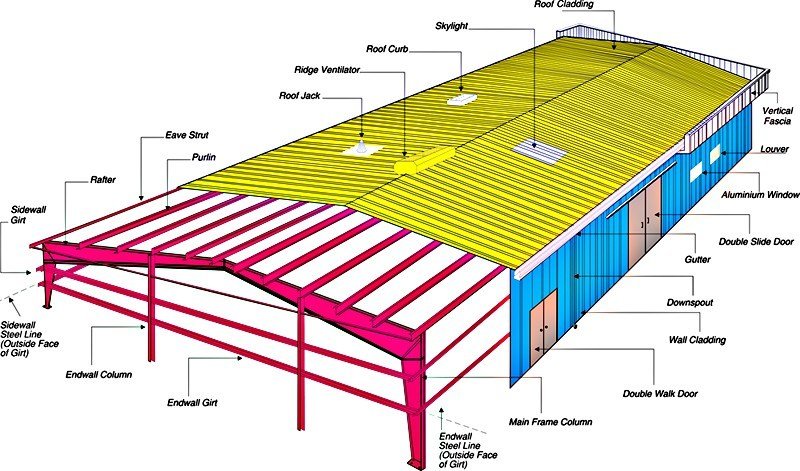

Steel Structure warehouse or workshop consists of steel beam,steel sheets and sandwich panel. All parts of the building are jointed with bolts. The packing type is falt packing. Base material is Q235/Q345 steel. The material is low cost and can be used many times. Earthquake conditions is 8 Degree earthquake conditions.
Climate conditions -20°C-45°C. Snow load100 Kg/m⊃2;,Wind speed150 Km/h.
Specification | Structure type: | Light steel |
Design standard: | AISI ASTM BS DIN GB JIS NSCP | |
Length: | With customer's requirement | |
Width: | Single span, double span, long span | |
Height: | With customer's requirement | |

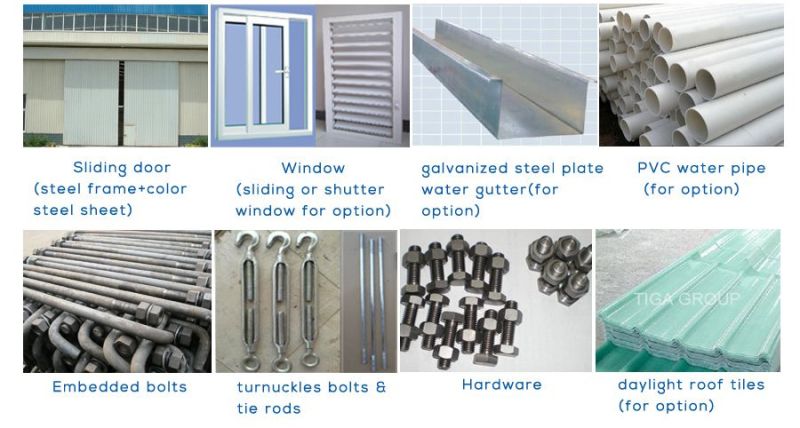

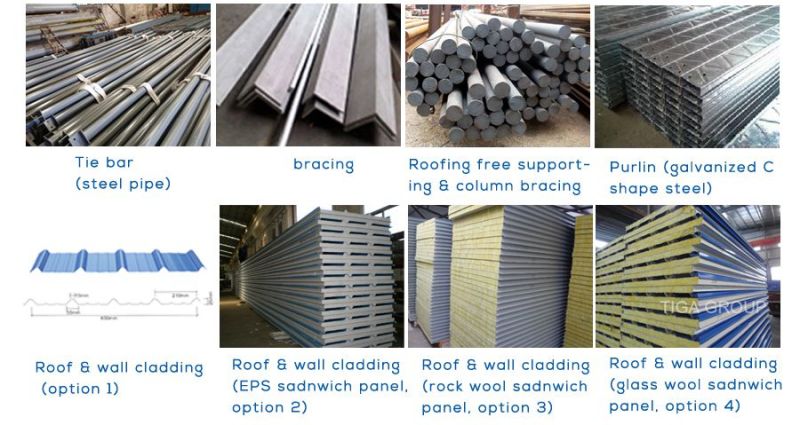

Components | Bolt ball: | Steel 45#, epoxy zinc primer with PU paint |
Column: | Q235, Q345 welded H section steel | |
Beam: | Q235, Q345 welded H section steel | |
Tube: | Steel Q235, epoxy zinc primer with PU paint | |
High strength bolt: | Cr 40, electroplating | |
Sleeve: | Steel Q235 & 45#, electroplating | |
Purlin: | Q235 C channel or Z channel, galvanization | |
Roof&Wall panel: | Sandwich panels, color steel sheet, day light sheet-FRP sheet |
Advantage: 1.Possesses a wide span, with either a single or multiple spans and can have a maximum span clearance distance in 36m without middle columns.
2. Low cost with unit price ranging from USD35to USD70per square meter FOB according to customer's requirements.
3. Fastconstruction and easy installation
4. Has a service life of more than 50 years
5. The warehouses are also environmentally friendly , have a stable structure , are earthquake resistance, water proof , and energy saving
FAQ:
Q: How about your production capacity?

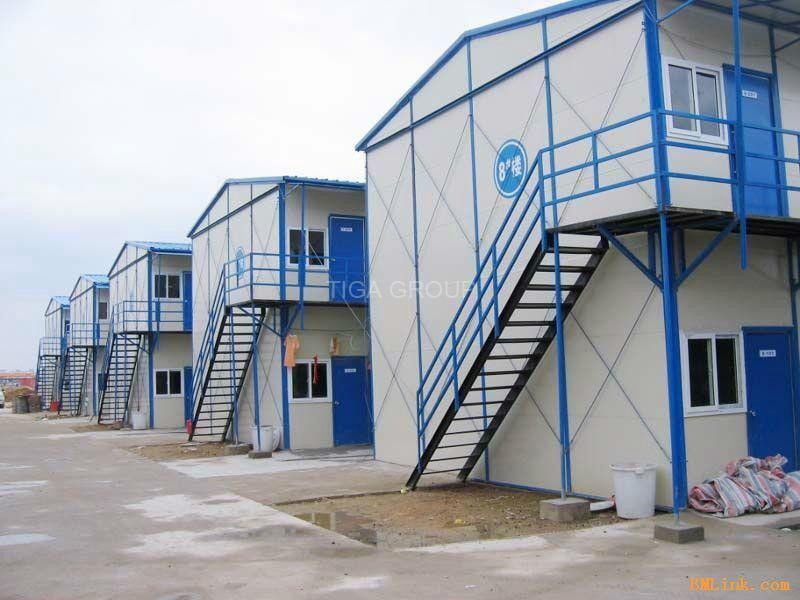

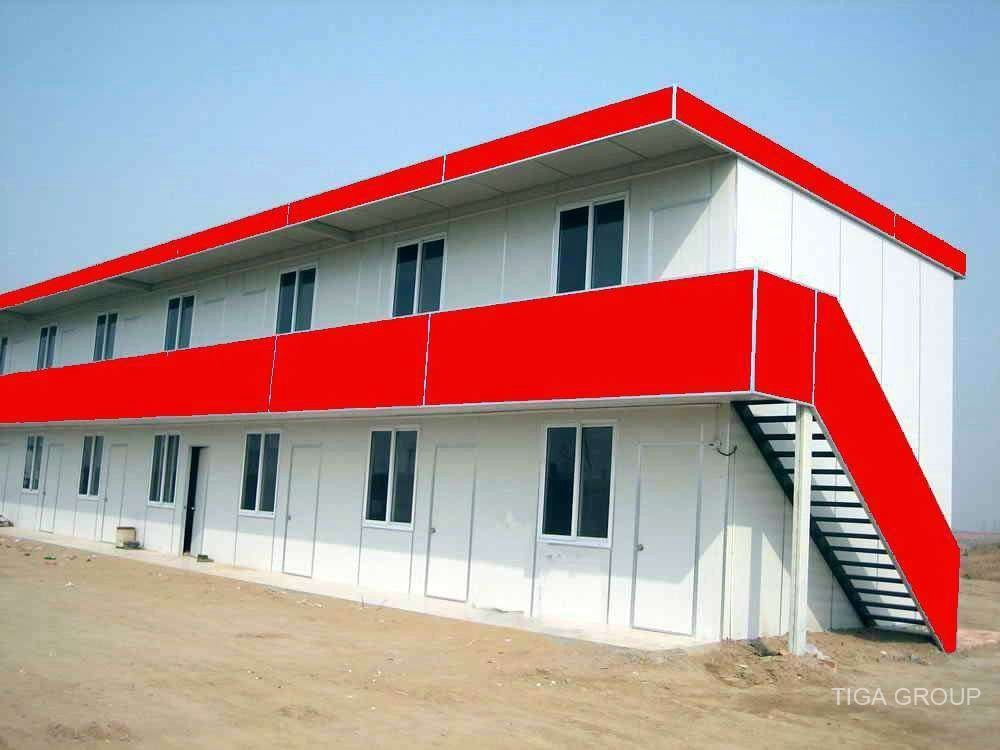

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.
Q: How about your quality control?
A: We have got certificate ISO9001:2008, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
Q: How about your delivery time?
A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided
