TIGA-WL-SSW1030
GB, ASTM, DIN, JIS, AISI, BS
Hot-Rolled Steel
Steel Column
Q345
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
We Can According to Your Needs to Design
as Your Requirements
H Beam or I Beam with Q235 or Q345
Color Steel Sliding Door or Electric Rolling Gate
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
100-100, 000 SQM
940600
Light Section Steel
Low-alloy High-tensile Structural Steel, TIGA
Bolt Connection
High-Strength Steel
Bottom Wall Beam
Ball Blast
ISO9001,ISO14001,
According to The Need of Design
PVC Window or Aluminium Alloy Window
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
Seaworthy Package
China

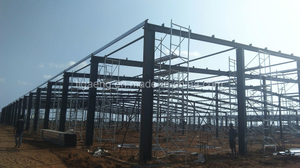

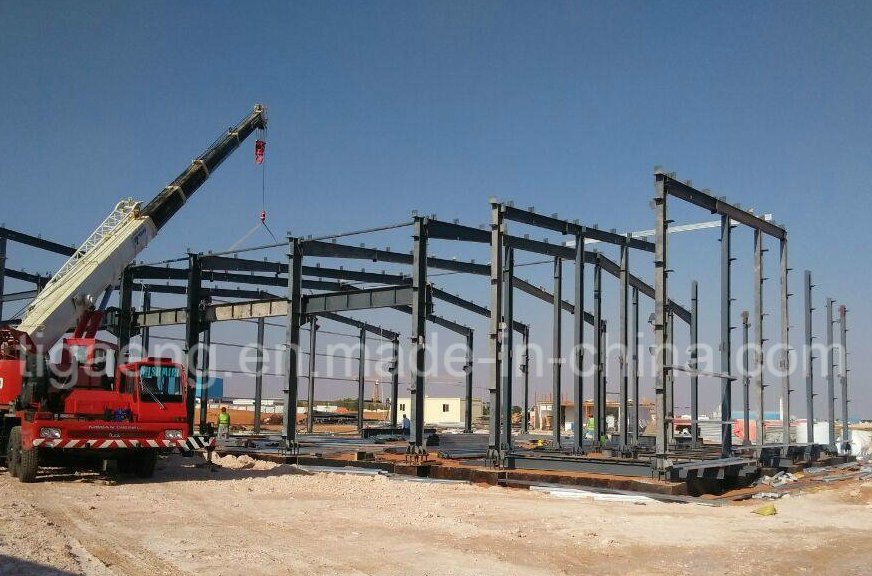

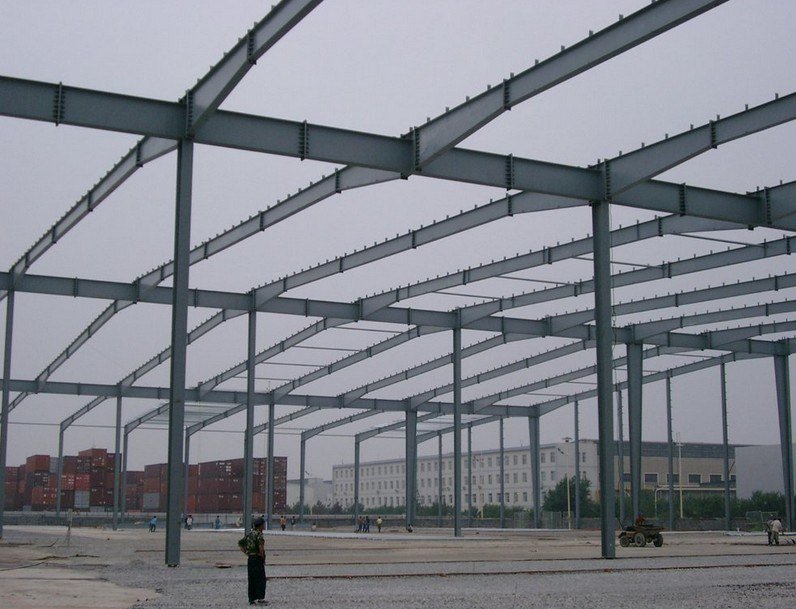

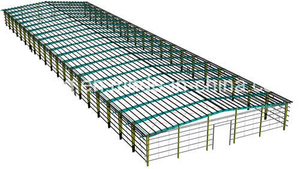

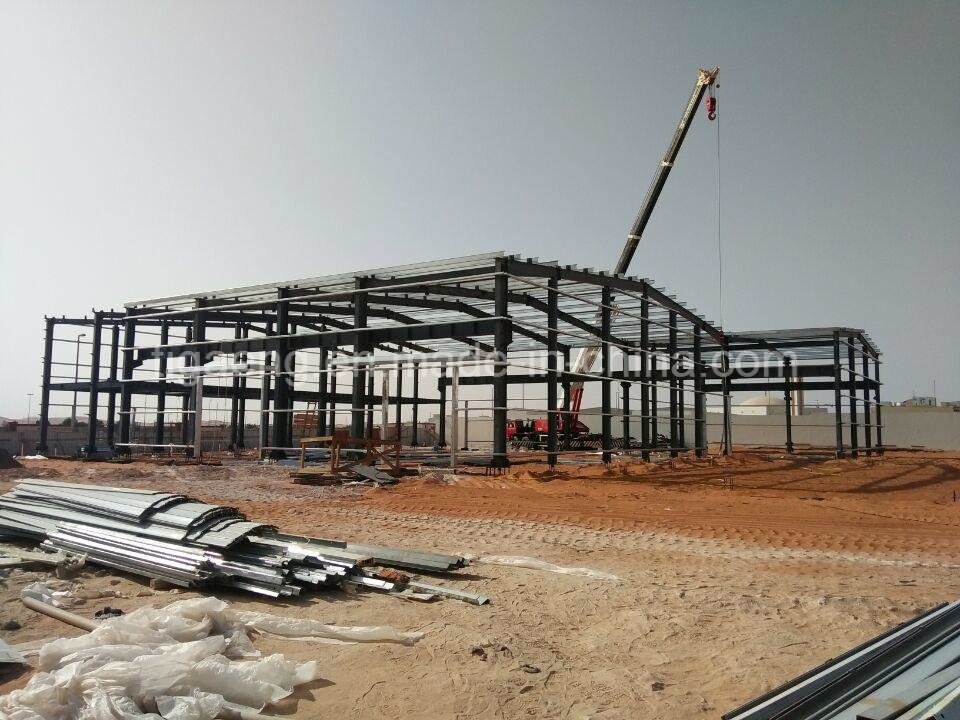

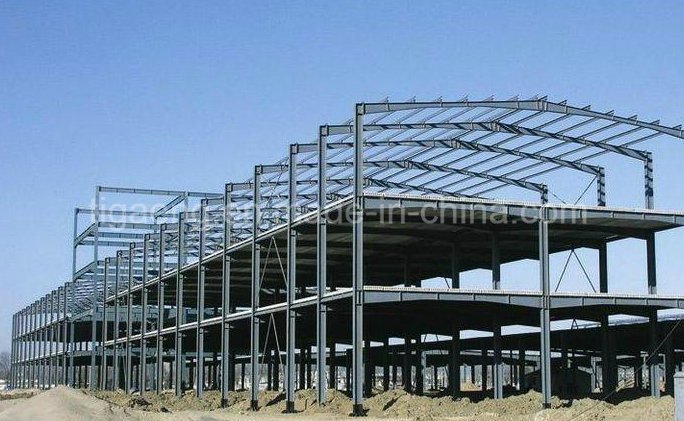

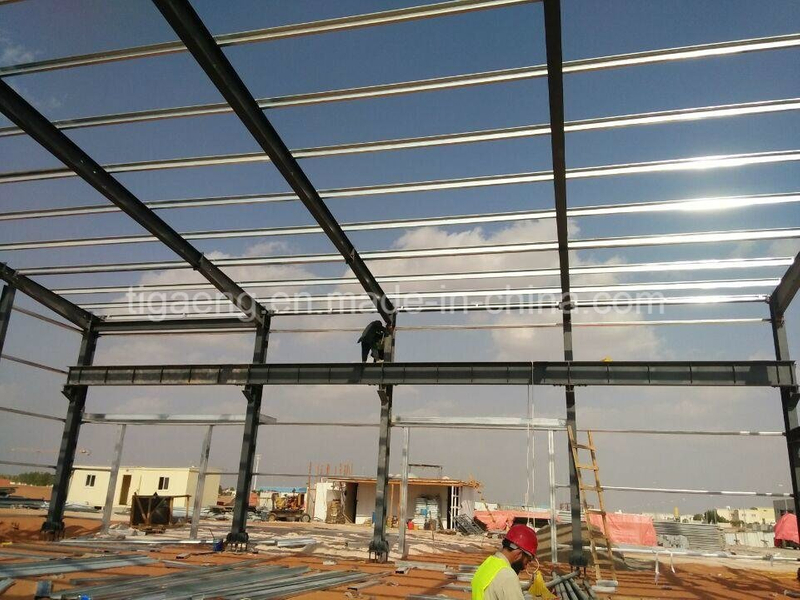

Pre engineered steel structure godown building is a Green economy building system, which is formed by main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), door and window system.

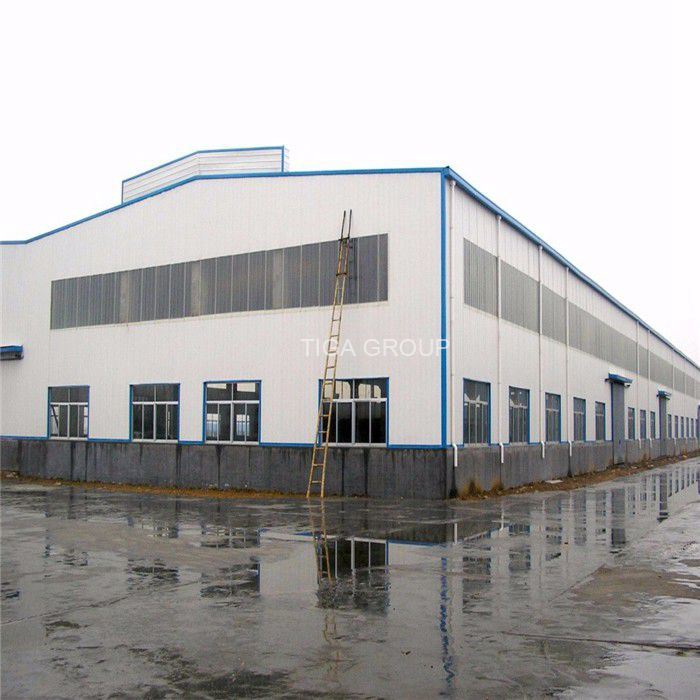

Pre engineered steel structure godown building is widely used as warehouse, workshop, hangar, shed, etc..

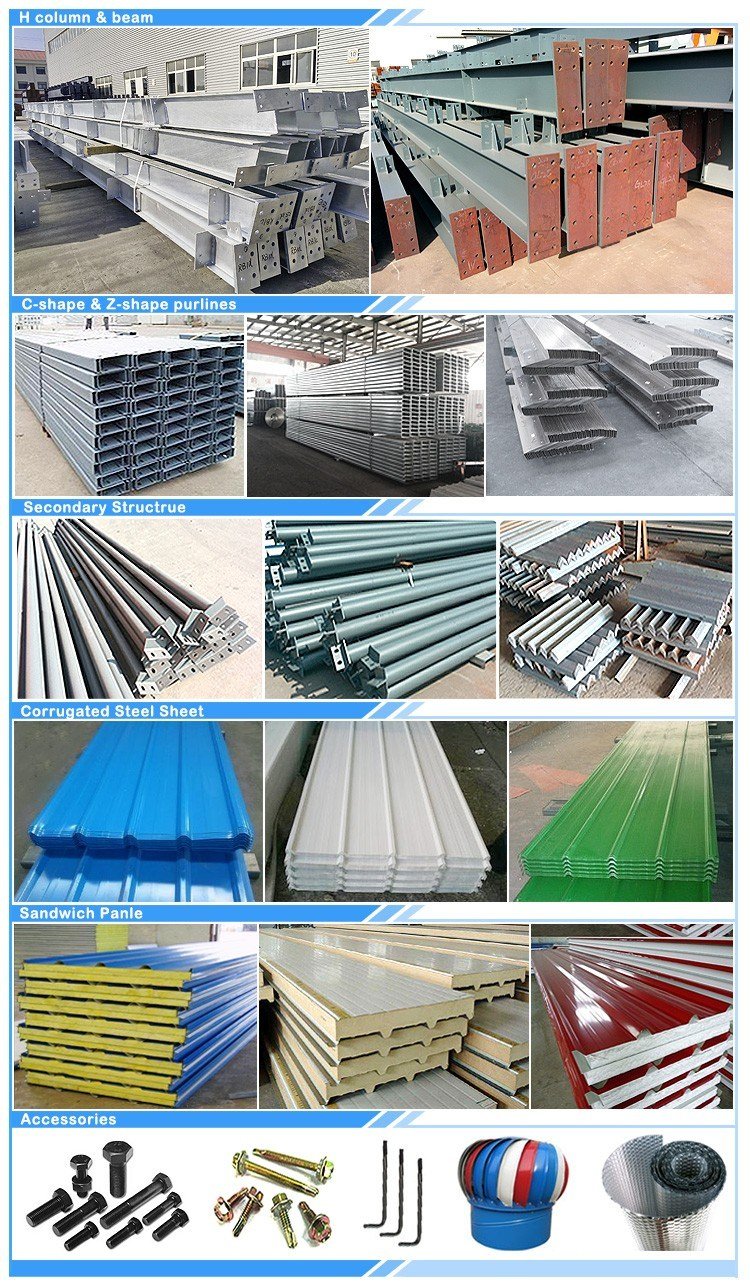

The main materials of prefabricated warehouse steel structure godown:
No. | Item | Materials |
1 | Column and Beam | Q345 or Q235 H section steel ( painted or galvanized) |
2 | Wall&Roof Purlin | C or Z section steel, size from c120~C320, z100~Z200(galvanized) |

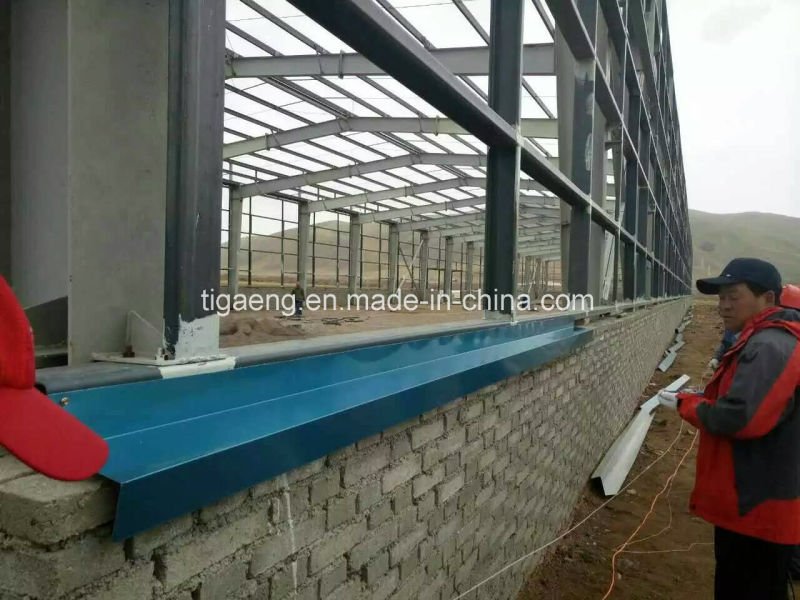

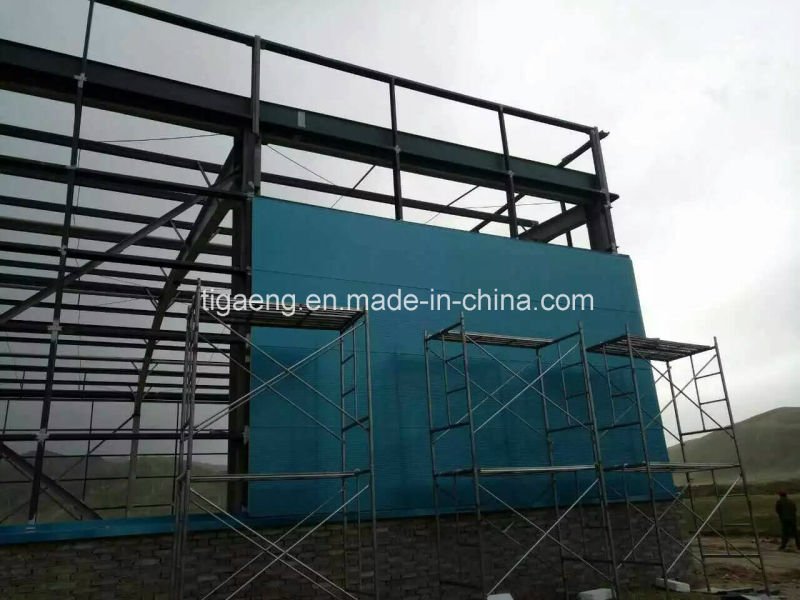

3 | Wall&Roof Panel | colorful corrugated steel sheet or sandwich panels (eps, rockwool, fiber glass, pu etc.) |
4 | supporting | steel angle, steel pipe, steel round bar. |
5 | door | sliding sandwich panel door or rolling metal door |
6 | window | pvc or aluminum alloy windows |
7 | accessory | anchor bolt, high strengthen bolt, normal Bolt, skylight Belts, ventilators, gutter, down pipe, etc. |
Steel Structure Characteristics (Advantages):
1). Wide span:single span or multiple spans. Width range from 10m to 60m or even more.
2). Low cost: Unit price range from USD35/m2 to USD 75/m2 according to customers request.
3). Fast construction and easy installation.
4). Long using life: up to 50 years.
5). Others: environmental protection, stable structure, earthquake proofing, water proofing, and energy conserving, 100% brand new material highest grade.
Terms:
Payment: T/T or by L/C(30% prepaid as deposit, the balance 70% before shipment)
Delivery time: 15~40 days, usually as customer's order
Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or in bulk
