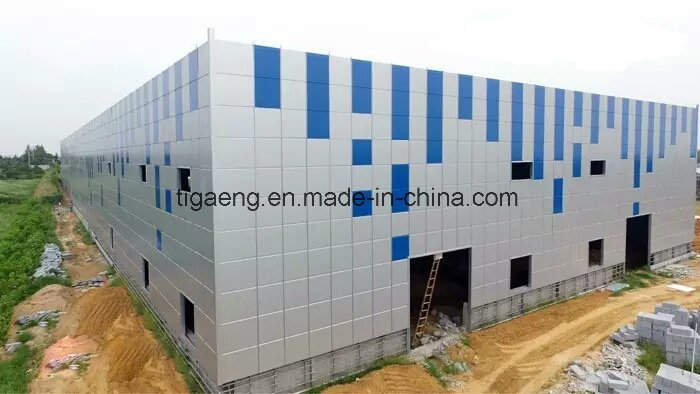

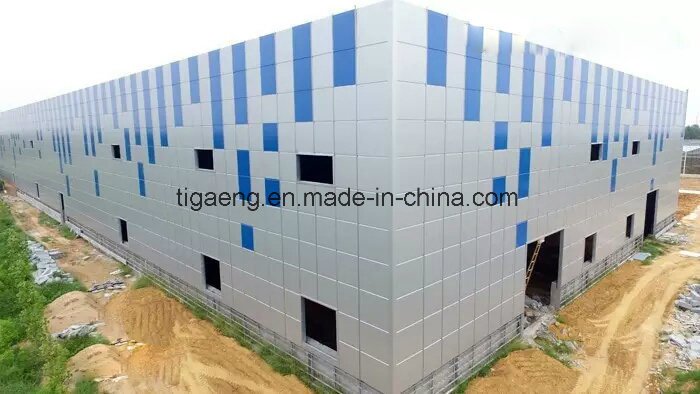

Moisture Proof Quickly Erectable Warehouse Building
| Quantity: | |
|---|---|
- TIGA-SX-FF 11611
- GB, ASTM, DIN, JIS, AISI, BS
- Hot-Rolled Steel
- Steel Column
- Q345
- Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
- We Can According to Your Needs to Design
- as Your Requirements
- H Beam or I Beam with Q235 or Q345
- Color Steel Sliding Door or Electric Rolling Gate
- EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
- 100-100, 000 SQM
- 940600
- Light Section Steel
- Low-alloy High-tensile Structural Steel, TIGA
- Bolt Connection
- High-Strength Steel
- Bottom Wall Beam
- Ball Blast
- ISO9001,ISO14001,
- According to The Need of Design
- PVC Window or Aluminium Alloy Window
- EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
- Seaworthy Package
- China
Large Gauge Steel Structure Workshop With Crane
Fill the Table below and Sent It to Us to Get Your Free Large Gauge Steel Structure Workshop With Crane Proposal.
Your location | Country________ State________ City_______ Postal code________ |
Size | Length________meter Width________meter Height________meter |
Storey | Storey number________ |
Wind Load | ________ km/hour |
Snow Load | ________ kn/m⊃2; |
Anti-earthquake | ________ magnitude |
Roof Normal Payload | ________ kg/ m⊃2; |
Brick wall needed or not | If needed, brick height________ |
Thermal insulation if needed | If needed, EPS panel, PU sandwich panel Glass wool panel, Rock wool panel are optional. If needed, normal pre-painted steel tile will be used for your project. |
Crane if needed | If needed, _____units, max lifting weight____tons; max lifting height _____m |
Storage Cargo condition | If additional requirement for anticorrosive |
Design Common Norms
"Steel Design Code" (GB50017-2003)
"Cold-formed steel structure technical specifications" (GB50018-2002)
"Construction Quality Acceptance of Steel" (GB50205-2001)
"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)
"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)

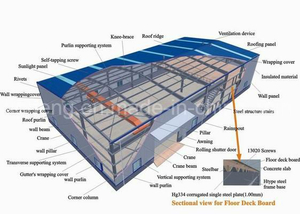

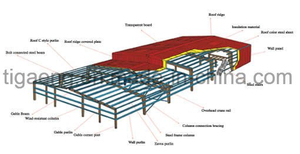

Component and Characteristics of the Construction

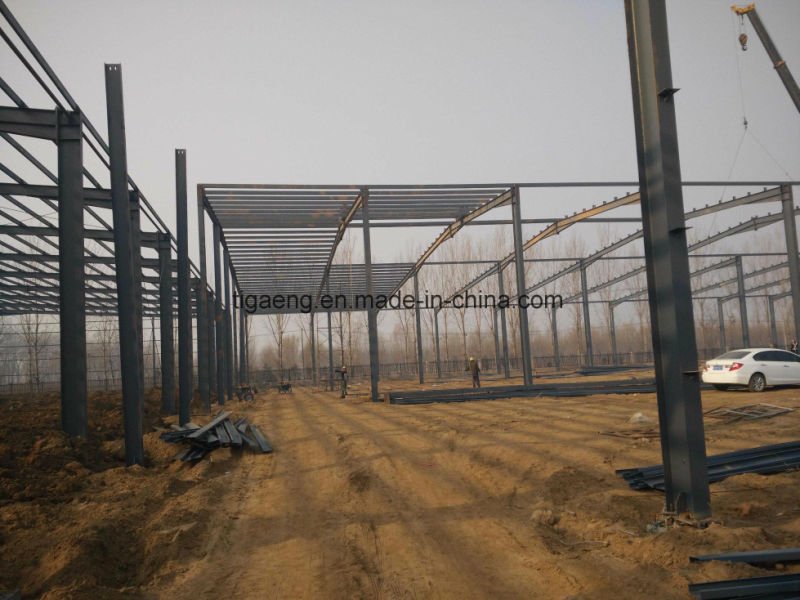

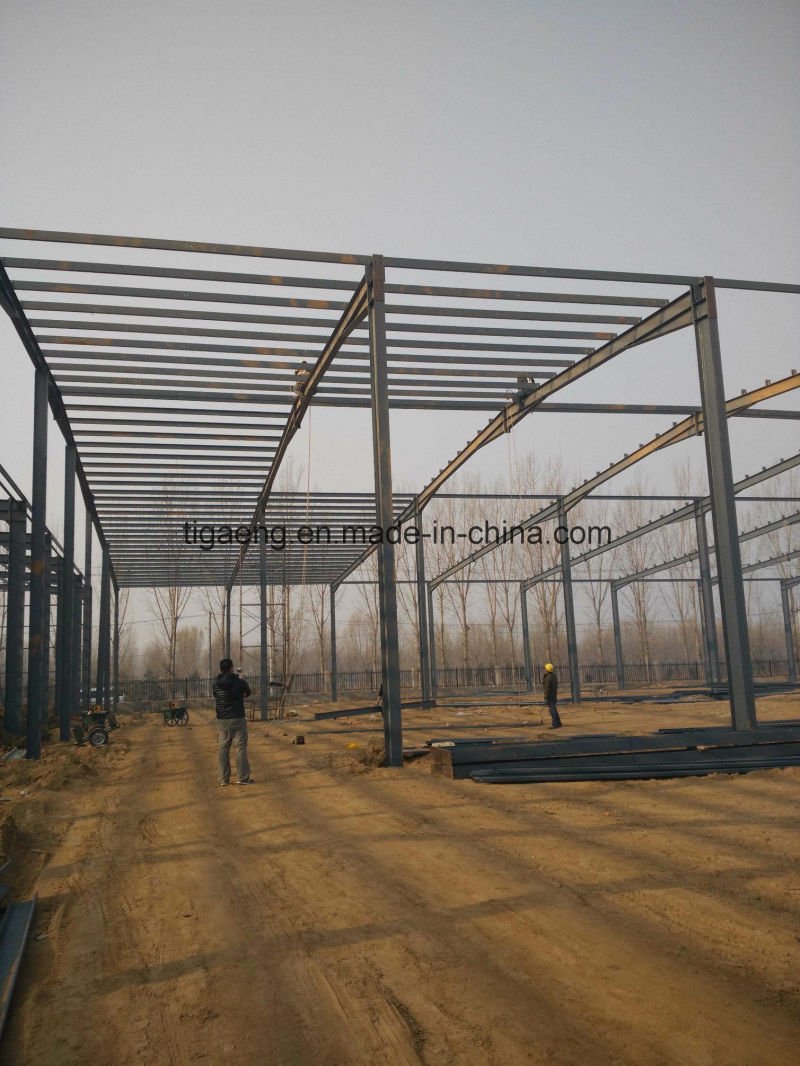

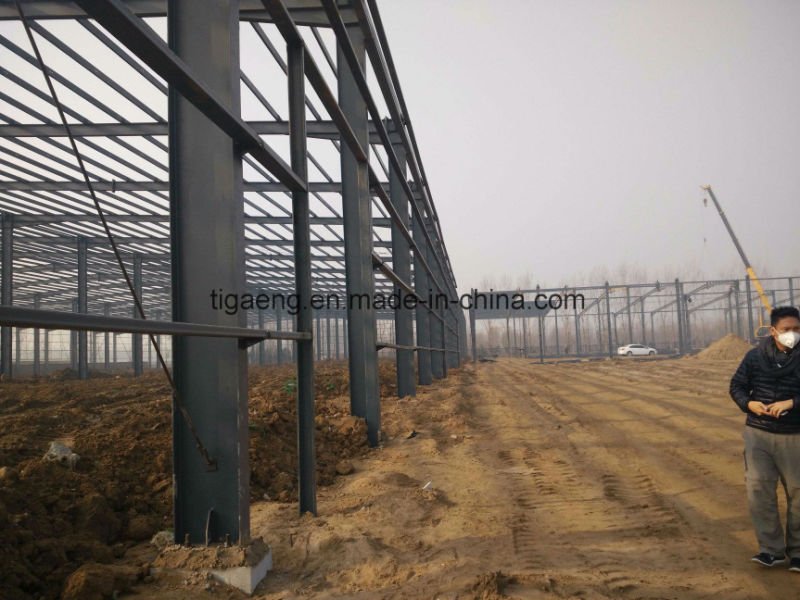

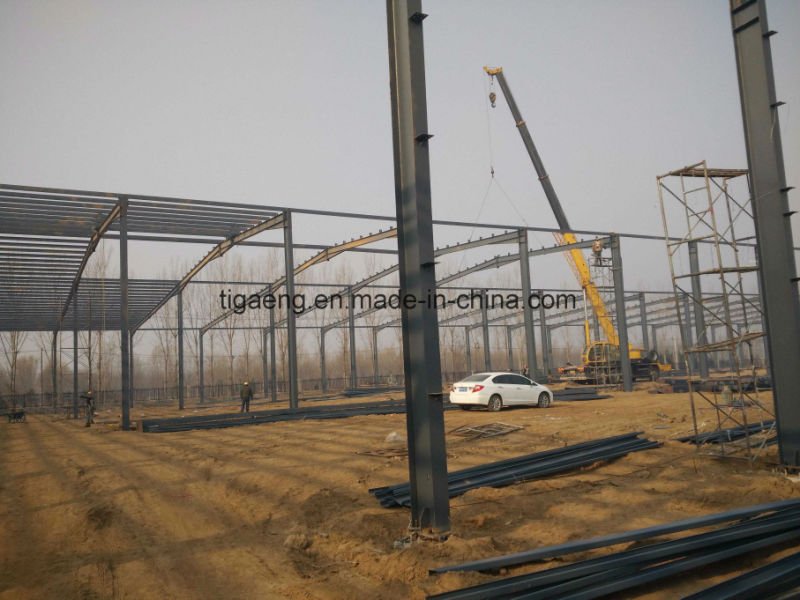

The main frame (columns and beams) is made of H section steel, steel grade is Q235 or Q345
The envelop construction net is made of cold form C-style purlin

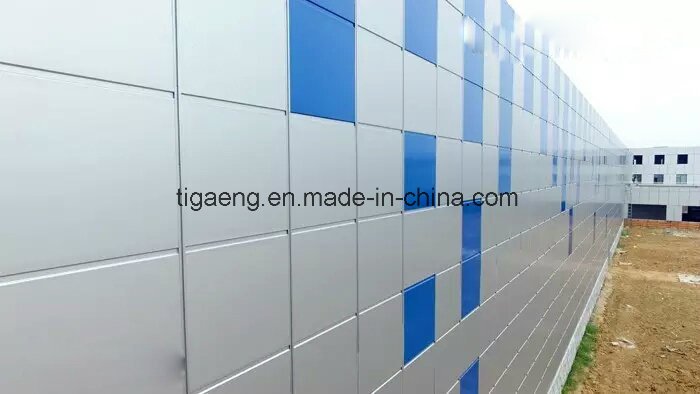

The wall and roof are made of color steel board or sandwich panels
Doors and windows can be designed at anywhere suit to different requests, and can sliding type or roll up type
Ventilation could be by window or ventilator
The light transfer zone could be added on the wall or roof with material sun glass board.
Connection Method
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts
Construction Advantage
Could be designed according to different purpose and environment condition
Long life span, could be more than 50 years
Quick and easy install work and the more economic friendly
Could be moved and recycle
Strong seismic and wind resistance
Application
workshop, warehouse, office buildings, supermarkets, logistic warehouses, showrooms, hangar, shelter, etc
Buisness Scope
- Industrial factory building;
- Multi-storey steel structure workshop, office building, civilian construction;
- High rise steel structure building (residential houses, office building, etc);
- Large span steel structure (airport, gymnasium, conference hall, etc);
1.the connection method of steel structure:
welding connection or bolt connection
2 The characteristics of steel
- Light weight steel structure
- Higher reliability of steel work
- Steel anti-vibration (earthquake), impact and good
- Steel structure for a higher degree of industrialization
- Steel can be assembled quickly and accurately
- Large steel interior space
- Likely to cause sealing structure
- Steel corrosive
- Poor fire-resistant steel
- Recyclable steel
- Steel shorter duration
3.Commonly used steel grades and performance of steel
- Carbon structural steel: Q235, Q345.
- High-strength low-alloy structural steel
- Quality carbon structural steel and alloy structural steel
- Special purpose steel
