Prefabricated Workshop Building Steel Structure Design Godown for Africa
| Quantity: | |
|---|---|
-
TIGA-WL-SSW1029
-
GB, ASTM, DIN, JIS, AISI, BS
-
Hot-Rolled Steel
-
Steel Column
-
Q345
-
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
-
We Can According to Your Needs to Design
-
as Your Requirements
-

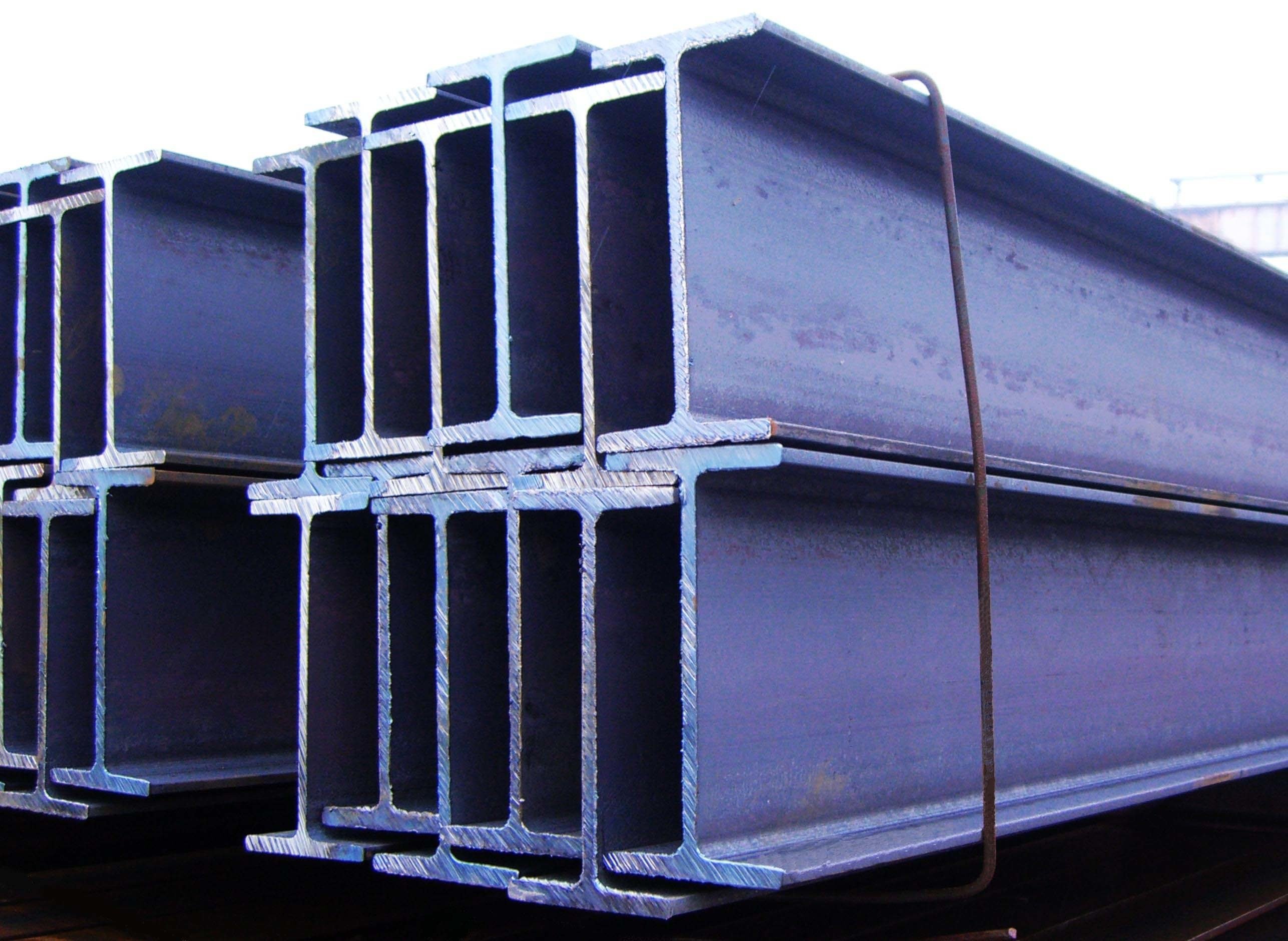

H Beam or I Beam with Q235 or Q345
-
Color Steel Sliding Door or Electric Rolling Gate
-
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
-
100-100, 000 SQM
-
940600
-
Light Section Steel
-
Low-alloy High-tensile Structural Steel, TIGA
-
Bolt Connection
-
High-Strength Steel
-
Bottom Wall Beam
-
Ball Blast
-
ISO9001,ISO14001,
-
According to The Need of Design
-
PVC Window or Aluminium Alloy Window
-
EPS,Rock Wool,PU Sandwich Panel,Color Steel Sheet
-
Seaworthy Package
-
China

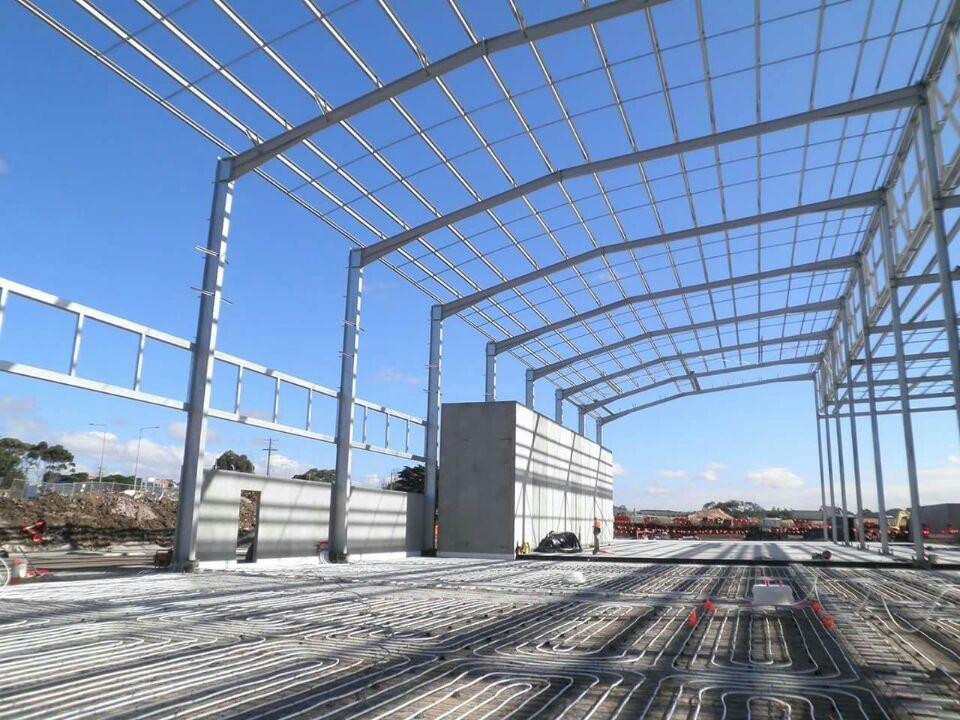

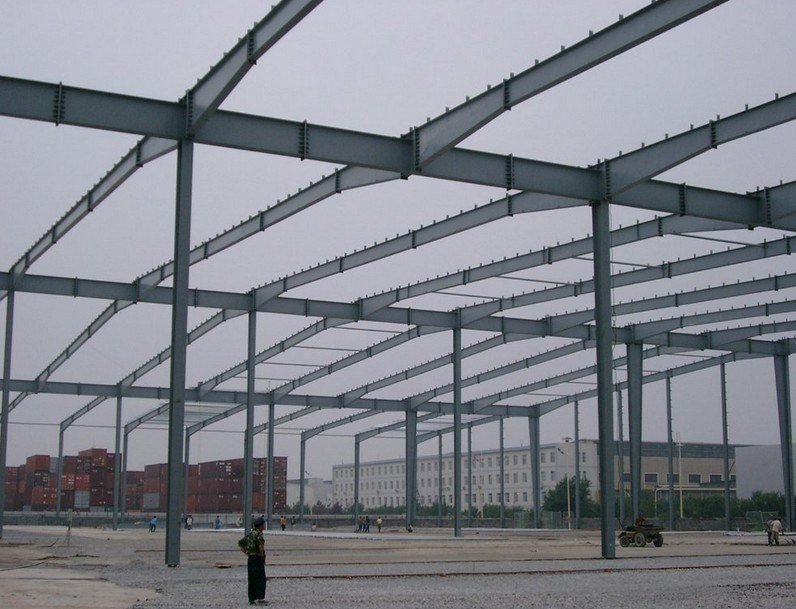

Steel Structure Godown (warehouse) is a kind of light steel structure building, the frame of the building consists of H section steel columns,H section steel beams and C or Z section purlins.

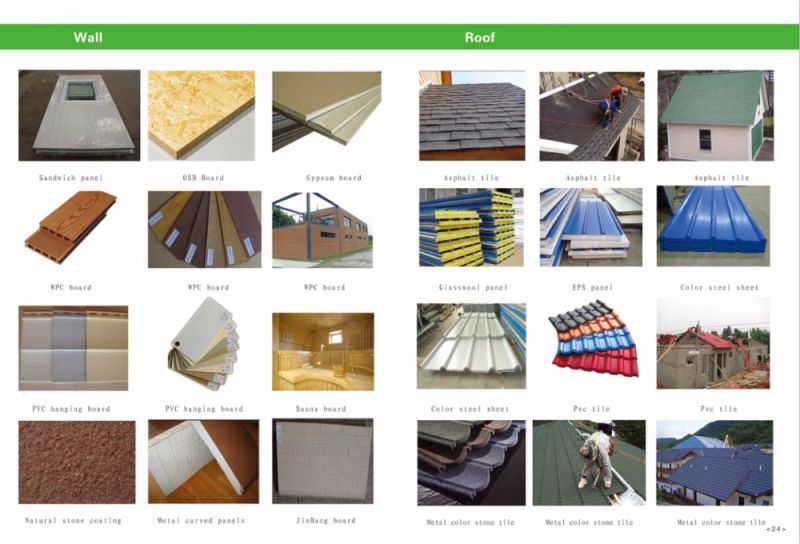

There are two kinds of wall and roof panel materials, steel sheet or sandwich panel,which depends on the usage of warehouse and your requirement.
All components of the building are prefabricated in our factory,all you have to do is connecting them with bolts in your work site, so it is also named prefabricated warehouse.
The steel structure godown design should consider many factors such as wind speed, snow load, dead load , live load, insulation, any requirements of the project.

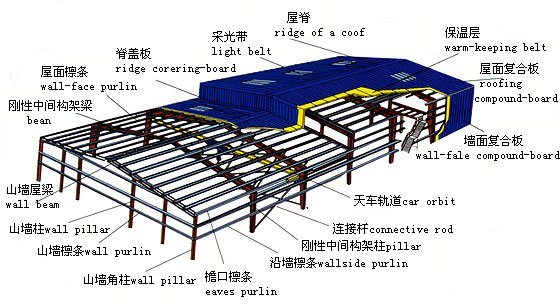

Main Components:
Main Steel Frame | H section steel;Welding;Rust removing;Surface processing;Intensive bolt |
Supporting System | Angle Brace; Cross Support; Belt Bar; Small Brace; Ordinary Bolt |
Roof System | Purlin; Out-roof Panel; Transparent lighting panel; Accessories; Edge Cover; Gutter; Rainspout |
Wall System | Purlin; Wall; Accessories; Edge Cover; Axial fan; Door & window |
Features: 1.Possesses a wide span, with either a single or multiple spans and can have a maximum span clearance distance in 36m without middle columns.
2. Low cost with unit price ranging from USD35to USD70per square meter FOB according to customer's requirements.
3. Fastconstruction and easy installation
4. Has a service life of more than 50 years
5. The warehouses are also environmentally friendly , have a stable structure , are earthquake resistance, water proof , and energy saving
Product application:
Steel structure is widely used as industry factory building, warehouse, gymnasium, poultry shed, school and medical clinic, garage, hangar, etc.
Please Kindly provide the following importance technical parameter for quotation:
(1) Building size: length * width *height ;
(2) Wind speed (max speed);
(3) Snow load (kg/m2 in max situation);
(4) Earth quake grade (if have) ;
(5) Live load and dead load for roof and flooring(special for mutli-floors building);
(6) The requirements for window and door;
(7) Max height and weight for crane to lift.
FAQ:
Q: How about your production capacity?
A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.
Q: How about your quality control?
A: We have got certificate ISO9001:2008, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
Q: How about your delivery time?
A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
